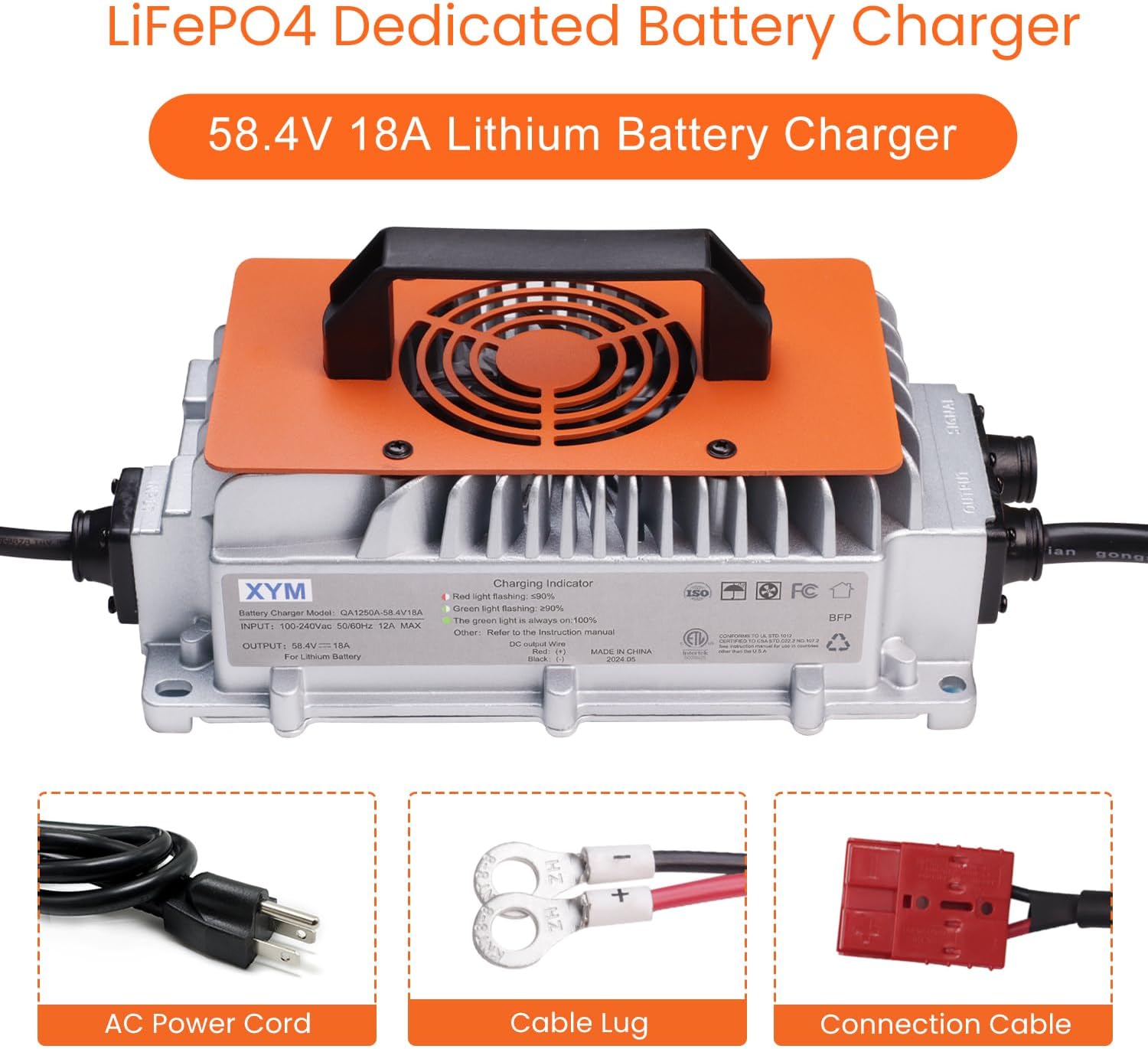

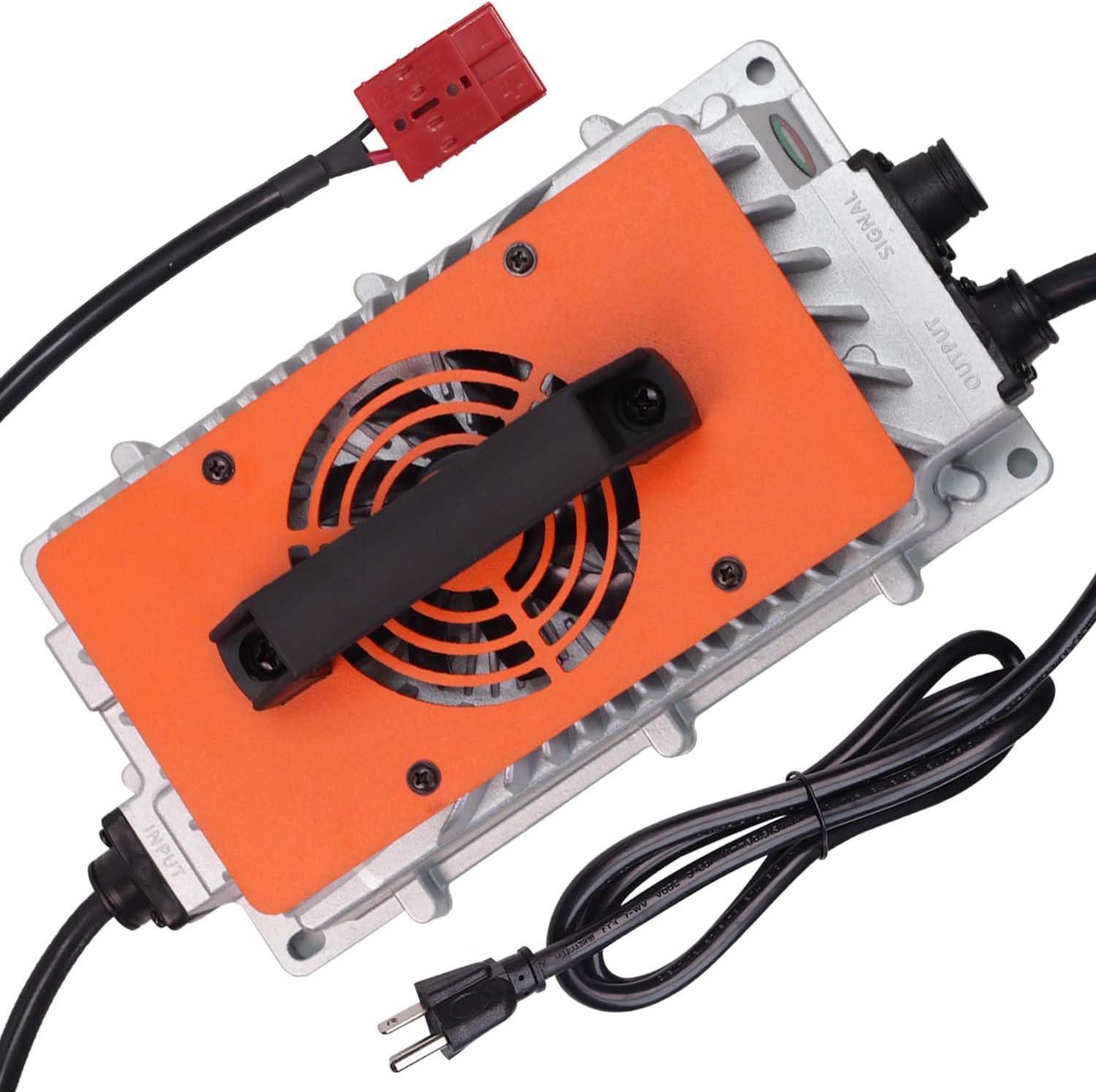

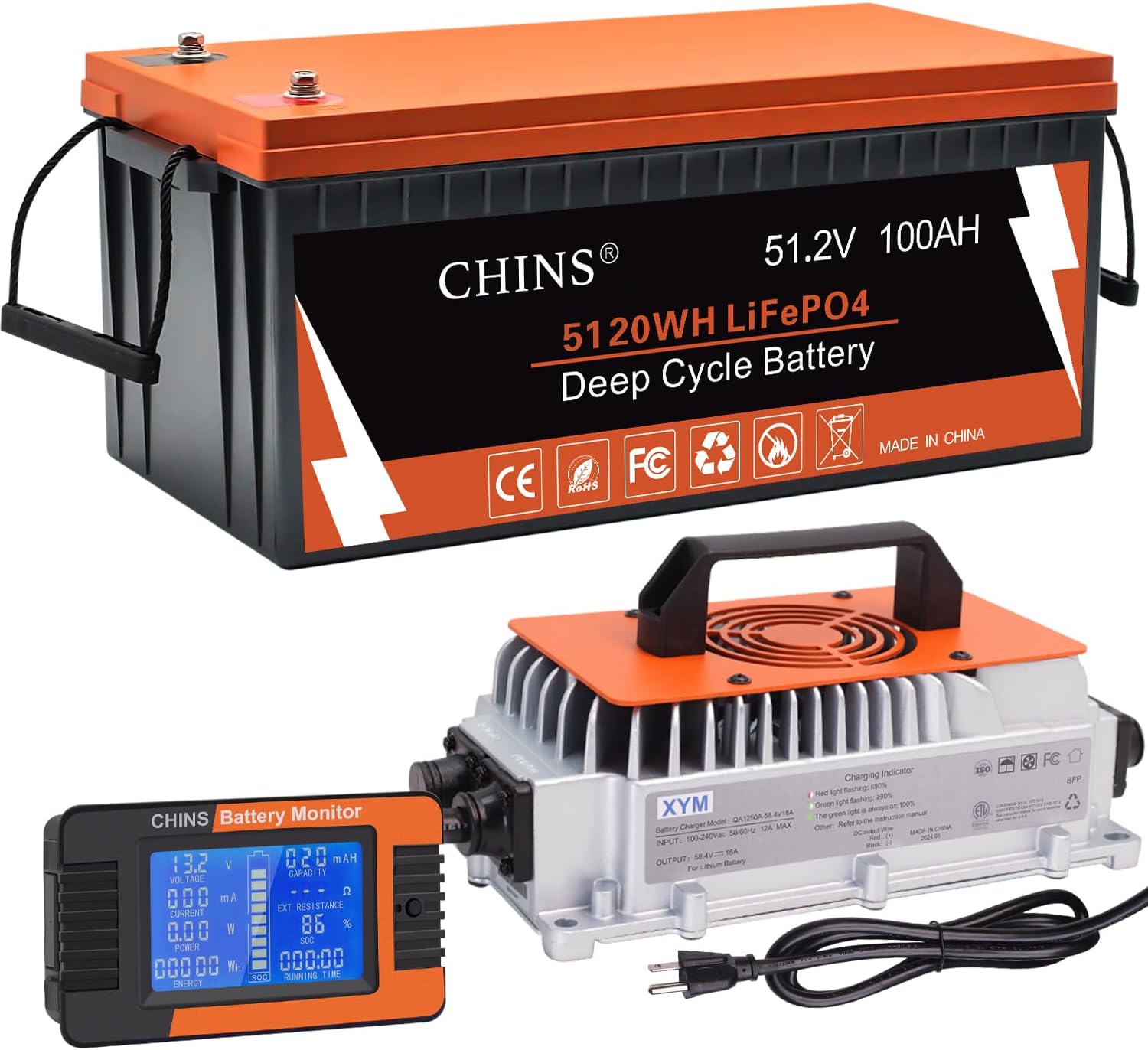

CHINS 48V 100Ah Lithium Golf Cart Battery, Bluetooth LiFePO4 Battery, Built in 200A BMS, Peak Current 1000A, Includes 48V 18A Lithium Charger and Monitor, Perfect for Golf Carts, RV etc

Price: $1,059.99 - $831.99
(as of May 28, 2025 17:42:23 UTC – Details)


Nominal Voltage: 51.2V
Charge Voltage: 56.8V-58.4V
BMS Board: 200A
Peak discharge current(Duration: less than 5 seconds) : 1000A
Dimension: 20.47 x 10.59 x 8.66 inches
Weight: 83.77 lb
Operating temperatures:
Charge: 0°C~50°C(32°F~122°F)
Discharge: -20°C~60°C(-4°F~140°F)
Storage: -10°C~35°C(14°F~95°F)
  The setting method of MPPT and inverter of 51.2V lithium iron phosphate battery pack is as follows:
Charging
Charging Limit Voltage: 56.8V
Over Voltage Disconnect Voltage: 58.4V
Over Voltage Reconnect Voltage: 55.2V
Float Charging Voltage: 55.2V
Discharging
Low Voltage Disconnect Voltage: 46.4V
Low Voltage Reconnect Voltage: 49.6V
Under Voltage Warning Voltage: 51.2V
  We live in an era of energy within reach. Every step we take consumes primary energy.
On the road of continuing to explore new energy, we strive to maintain a green life.
  CHINS’s factory is equipped with the most advanced R&D team and equipment,
and has passed UL, CE, RoHS, WEEE and PSE quality system certification.
  With 20 years of battery expertise, CHINS has always contributed to a green life, we firmly believe that “Green Leads Life”.
【Bluetooth function】: Compared with the traditional battery monitor, CHINS lithium battery has added Bluetooth function and can obtain various data (SOC) of the lithium iron phosphate battery. Customers can connect to the battery through the mobile phone APP, and read the battery voltage, current and other important information at any time. Wireless connection range: within 5-10 meters from the battery.
【Low temperature cut-off function】: The BMS inside the CHINS battery can automatically cut off the charging function in a low-temperature environment to avoid irreversible damage to the battery. Note: The peak current of the 48V 100Ah LiFePO4 battery is only 1000A, therefore, the peak current of the golf cart controller cannot exceed 1000A.
【Deep Cycle Battery】: CHINS LiFePO4 battery provides 4500+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity. Brand: CHINS, Size: 20.47 x 10.59 x 8.66 inches, Color: Black, Orange.
【Built-In BMS & Convenience & Maintenance Free】: CHINS LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.
【Capacity Expansion】: CHINS 48V 100AH LiFePO4 Battery does not support series connection, otherwise the battery will definitely suffer irreversible damage. Connection in parallel: it can connect multiple batteries, suggest no more than 8pcs in parallel. Allow to be extended up to 8 in parallel to get more capacity (Max 800Ah).
【Widely Used】: CHINS lithium iron phosphate battery can be used in the following areas: Home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf cart, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and more. When the batteries are used in parallel, the battery voltage and capacity must be the same, and purchased in near time(within 6 month).
