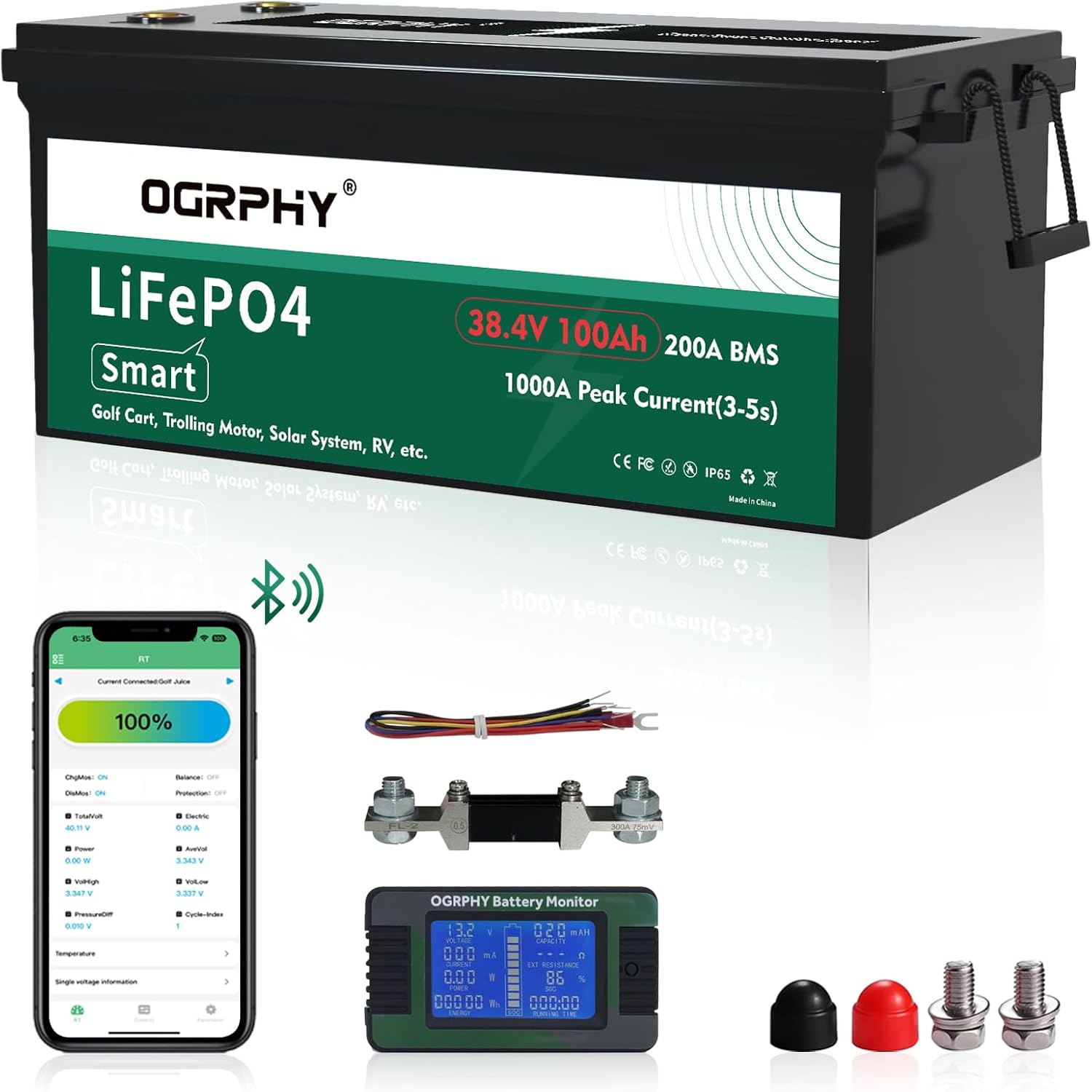

36V 100AH Lithium Golf Cart Battery, 36V Lithium Battery with 200A Bluetooth BMS, APP Monitor, 3.84kWh 38.4V Battery with 7.68kW Output, 1000A Peak Current for Golf Cart, Trolling Motor, RV

Price: $579.99
(as of Jun 06, 2025 08:29:30 UTC – Details)


Specification of OGRPHY 36V 100AH LiFePO4 Battery with 200A BMS
Features of OGRPHY LiFePO4 Battery
① Grade A Cells: OGRPHY LiFePO4 batteries are all made of grade A cell with UL certification.
② Longer Cycle Life: 20 times longer cycle life and 5 time longer float/calender life than lead acid battery, minimize replacement cost and reduce total cost of ownership.
③ Light Weight: About 40% of the weight of a comparable lead acid battery.
④ Deep Cycle: Can release twice power of lead acid battery.
⑤ Wide Temperature Range: -20℃ ~ 60℃
⑥ Superior Safey: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Electrical Characteristics
① Normal Voltage: 38.4V
② Normal Capacity: 100Ah
③ Energy: 3840Wh
④ Cycle Life: >2000 cycles @0.5C 100%DOD, >5000 cycles @0.5C 80%DOD
⑤ Months Self Discharge: <3%
⑥ Efficiency of Charge: 100% @0.5C
⑦ Efficiency of Discharge: 96 ~ 99% @0.5C
⑧ BMS Functions: Over charge, over discharge, over current, short circuit, Charge high temperature , Charge low temperature, discharge high temperature , Discharge low temperature protection, Bluetooth
⑨ Maximum Modules in Series: 1 pcs
Standard Charge and Discharge
① Charge Voltage: 42.6-43.8V
② Recommended Charge Current: 30A
③ Max Charge Current: 150A
④ Max Continuous Discharge Current: 200A
⑤ Peak Discharge Current: 1000A 3-5S, 600A 30S, 300A 32S.
⑥ BMS Discharge Voltage Cut-Off: 30V (2.5 ±0.08 v) (2 s)
⑦ BMS Charge Voltage Cut-Off: 43.8 V (3.65 ±0.025 v) (2 s)
Working Environmental
① Charge Temperature: 0 ℃ to 55 ℃ (32F to 131F)
② Discharge Temperature: -20 ℃ to 60 ℃ (-4F to 140F)
③ Storage Temperature: -10 ℃ to 45 ℃ (14F to 113F)
④ Waterproof IP Class: IP65
Mechanical
① Plastic Case: ABS
② Approx. Dimensions: 20.4 x 10.6 x 8.6 inch
③ Approx. Weight: 63.5 lbs
④ Terminal Type: M8
Proper way of charging and discharging will maximum your lithium battery’s capacity and circle life. Pls refer to the product manual carefully before you using OGRPHY battery.
Thank you for choosing OGRPHY LiFePO4 battery!
[Grade A Cells and 5000+ Deep Cycles] OGRPHY 36v lithium battery is made of new grade A cells with UL certification.
[Upgraded High Performance 200A BMS] Built in an upgraded 200A BMS, OGRPHY 36 volt lithium battery for golf cart is able to release max 200 amps continuous discharge current, the peak discharge current of OGRPHY 36 volt golf cart battery is 1000 amps and last 3-5 seconds, 300 amps will last 32 seconds, 600 amps will last 32 seconds. No worry about the cut off of the lifepo4 battery any more. 70 lbs thrust trolling motor and 8kW golf motor will be okay for OGRPHY 36V 100AH LiFePO4 battery.
[30 Miles Range for 3KW Golf Motor] The electric capacity of OGRPHY 36V 100AH LiFePO4 battery is 3.84kWH. OGRPHY 36V 100AH lithium battery was able to run a golf cart with 3kw motor for 30 miles under tests. No worry about the capacity at all, OGRPHY 36V 100AH golf cart battery will bring you home after the full eighteen holes.
[Safe and Widely Working Temp] Every OGRPHY 36v lithium battery had been tested in our factory before they can be sent to customers, OGRPHY 36v lithium battery is proved to be safe without explosion risk, without heavy metal. The charging te[Bluetooth BMS] OGRPHY 36V lithium battery was built in a smart bluetooth BMS which can be connected with your cell phones. Download the APP from the product manual, turn on the bluetooth of your cell phone, then you can connect with the battery in the APP. All the parameters will be displayed.mperature is from 0℃ to 55℃, discharging temperature is from -20℃ to 60℃. OGRPHY battery is capable of many extreme weather with a extra IP65 waterproof.
[Various Usage Scenarios] Though OGRPHY 36V 100AH LiFePO4 battery was originally designed to be used as golf cart battery, but with the upgraded 200A BMS, OGRPHY 36V 100AH battery is also suit for trolling motors, solar systems, RV, marine.
[Safe with the Multiple Protection of BMS] The BMS in OGRPHY 36V 100AH LiFePO4 battery can protect the battery from low/over voltage, over current, short circuit, low/high temperature, so it is conpeletely safe with this OGRPHY 36V golf cart battery under you seat on your golf cart. No risk of leakage, no risk of explosion.
